eDeliver 9
The eDELIVER 9 is the future of the transportation industry, with battery options and battery cooling methods that significantly reduce charging time, extend battery life and increase operating range.
The eDELIVER 9 is the future of the transportation industry, with battery options and battery cooling methods that significantly reduce charging time, extend battery life and increase operating range.
This electric commercial vehicle can produce an WLTP (Worldwide Harmonised Light Vehicle Test Procedure) city range of 219 miles and has a fast charge of 80% in 45 minutes. What’s more, the eDeliver 9 is designed to provide extra space and comes with luxury features as standard.

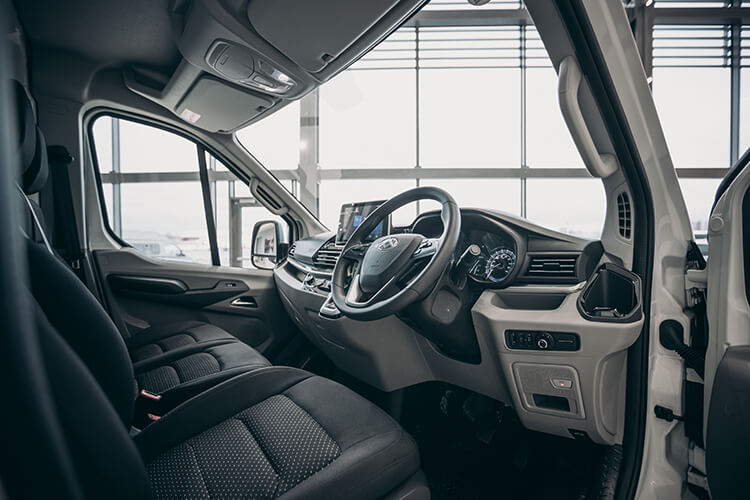

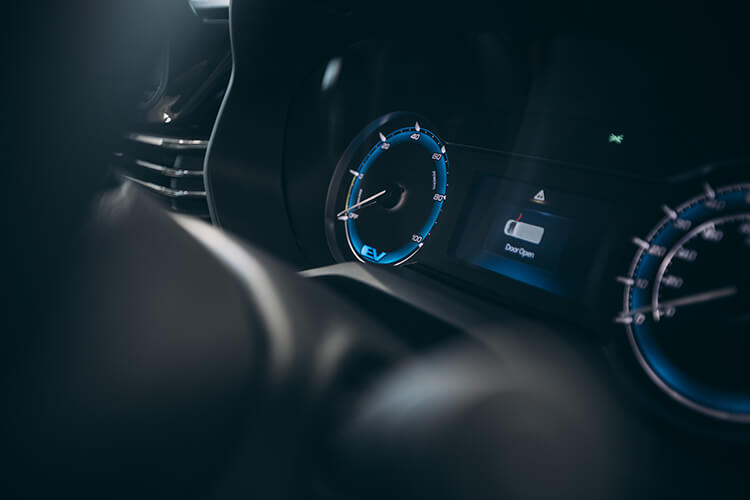

The 8-way adjustable driver’s seat with armrest, lets you set your seat your way. While the smart air conditioning system and intelligent space design ensures a pleasant and organised work environment.
Three battery options developed for the eDeliver 9 work with various battery cooling methods to reduce charge time, extend battery life and increase the operating range. Choose from 51.5Kwh, 72Kwh or 88.55 Kwh configurations, with AC and DC charging as standard.

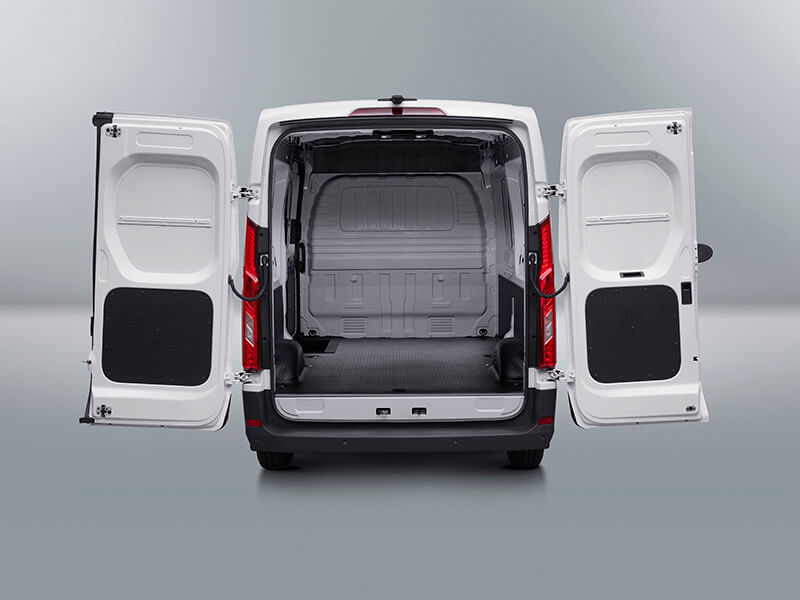

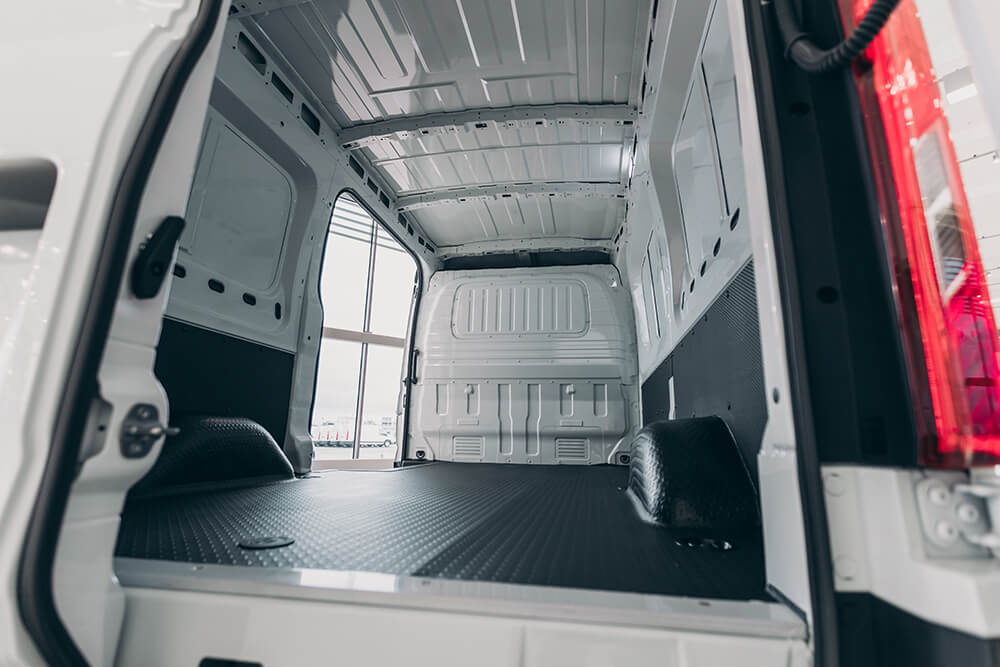

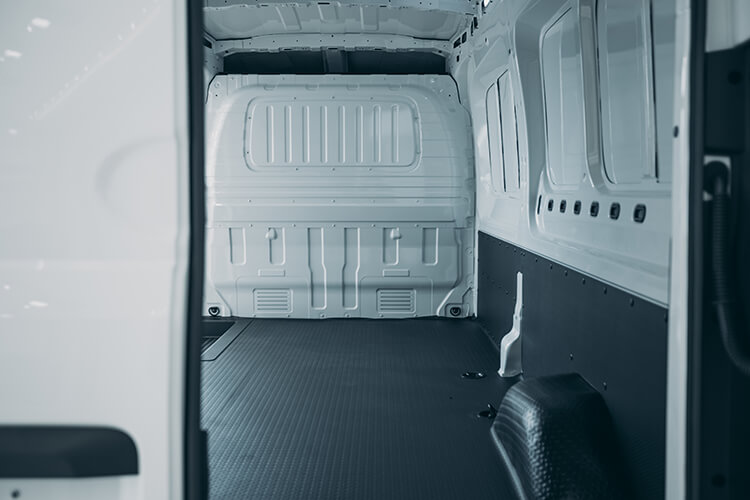

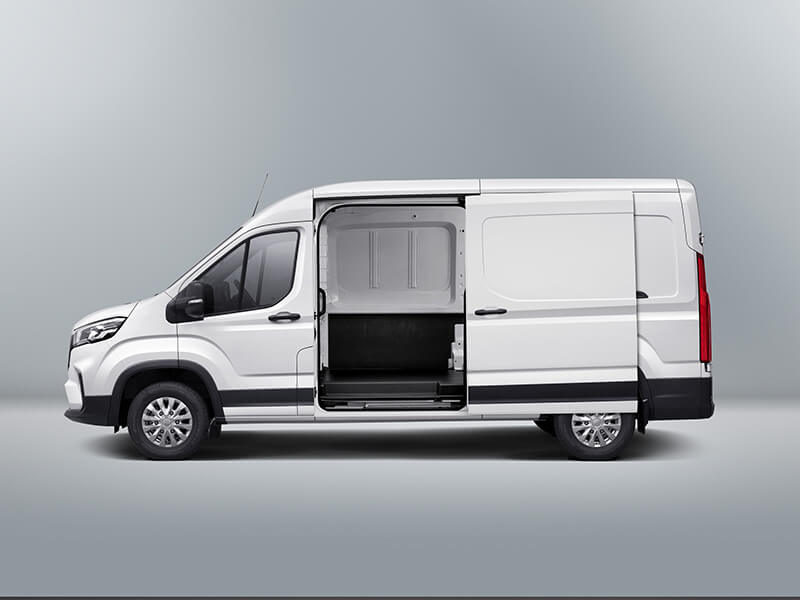

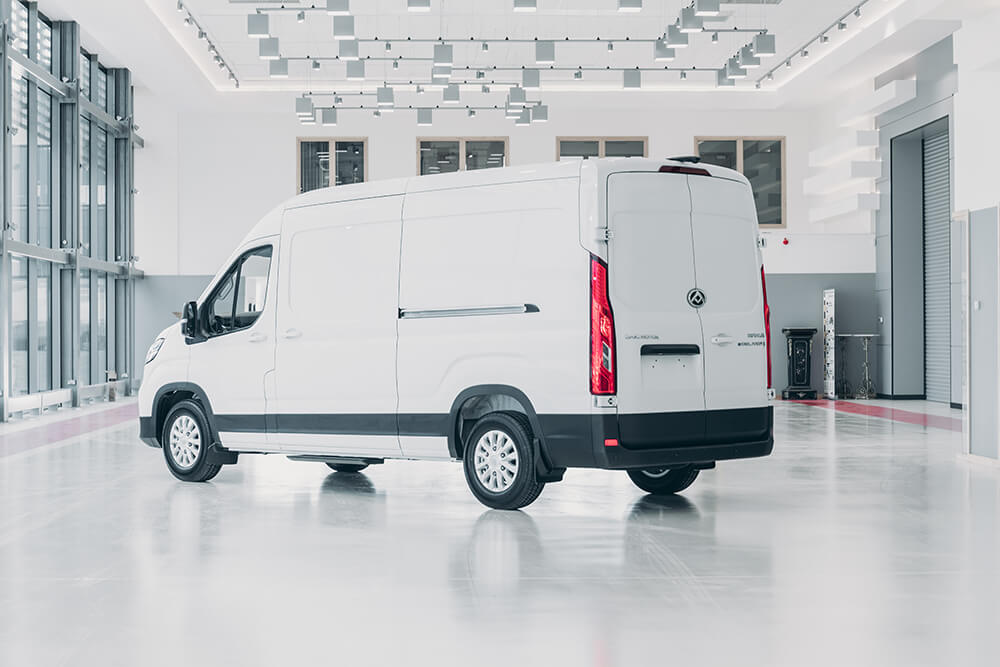

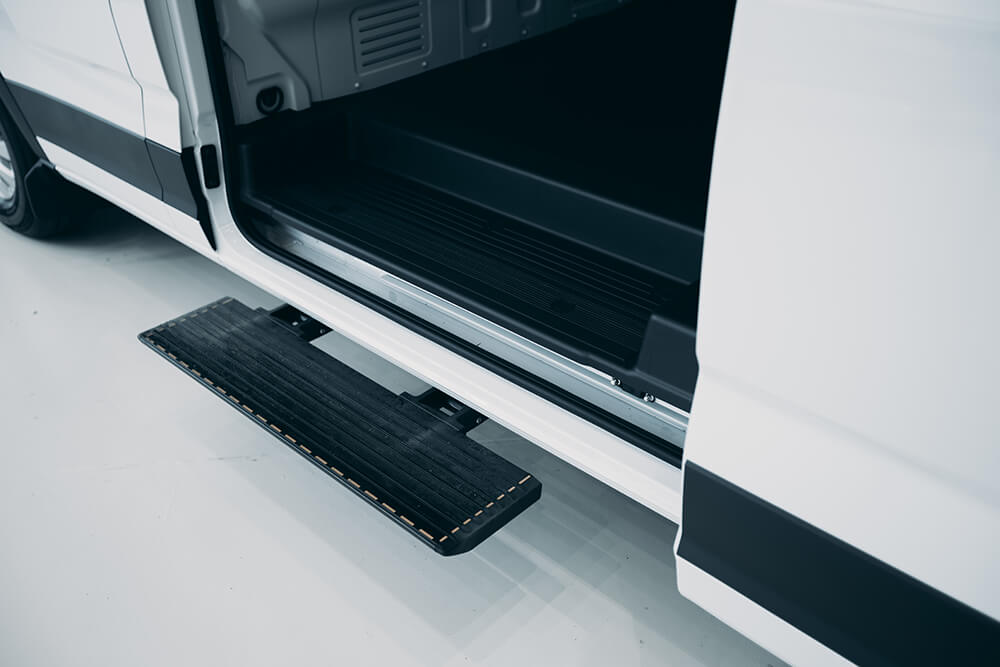

Benefit from maximum storage space of 11m3, accessible via a sliding door and double rear doors that open to 236°. Loading and unloading is made even easier with an optional electric side step, wear resistant flooring and LED illumination.
| MH 51.5kWh | MH 72kWh | LH 51.5kWh | LH 72kWh | LH 88.55kWh | MC CAB 65kWh | LC CAB 65kWh | N2 88.55kWh | LC CAB N2 65kWh | |
|---|---|---|---|---|---|---|---|---|---|
| Dimension (L * W * H mm) | 5546 X 2062 X 2525 | 5546 X 2062 X 2525 | 5940 X 2062 X 2525 | 5940 X 2062 X 2525 | 5940 X 2062 X 2525 | 6200 X 2052 X 2290 | 6680 X 2052 X 2290 | 5940 x 2062 x 2525 | 6680 x 2052 x 2290 |
| Wheelbase (mm) | 3366 | 3366 | 3760 | 3760 | 3760 | 3760 | 4048 | 3760 | 4048 |
| Cargo Volume (m3) | 9.7 | 9.7 | 11 | 11 | 11 | – | – | 11 | – |
| Slide door width (mm) | 1269 | 1269 | 1269 | 1269 | 1269 | – | – | 1269 | – |
| Battery Capacity (kWh) | 51.5 | 72 | 51.5 | 72 | 88.55 | 65 | 65 | 88.55 | 65 |
| Electric motor output (Peak power/Peak torque) |
150kWh / 310N.m | 150kWh / 310N.m | 150kWh / 310N.m | 150kWh / 310N.m | 150kWh / 310N.m | 150kWh / 310N.m | 150kWh / 310N.m | 150kWh / 310N.m | 150kWh / 310N.m |
| Top speed (mph) | 62 | 62 | 62 | 62 | 62 | 62 | 62 | 56 | 56 |
| Charging time – AC 100% (h) | 6 | 6 | 6 | 8 | 8 | 6.5 | 6.5 | 12 | 9 |
| Charging time – DC 80% (min) | 40 | 40 | 40 | 40 | 45 | 36 | 36 | 45 | 36 |
| CVW (kg) | 2300 | 2460 | 2340 | 2460 | 2640 | 2700 | 2750 | 2660 | 2185 |
| Pay load (kg) | 1200 | 1040 | 1160 | 1040 | 860 | 1290 | 1290 | 1390 | 1865 |
| WLTP city (miles)* | 147 | 179 | 147 | 179 | 219 | – | – | 219 | – |
| WLTP Combined (miles)* | 112 | 146 | 112 | 146 | 185 | 90 | 90 | 185 | – |
